Define SVG Viewbox-Viewport Mapping
How to define the SVG Viewbox-Viewport Mapping?
✍: FYIcenter.com
The Viewbox-Viewport Mapping can be defined with attributes of the "svg" element:
1. Use <svg viewBox="{view_min_x} {port_min_y} {view_width} {view_height}" .../> attribute to set the Viewbox area which runs from ({view_min_x}, {view_min_y}) to ({view_min_x}+{view_width}, {view_min_y}+{view_height}). For example the following "svg" element sets the Viewbox area in the Object Coordinate System at (0,-100) with a size of (75,100):
<svg viewBox="0 -100 75 100" ...> ... </svg>
2. Use <svg width="{port_width}" height="{port_height}" .../> attributes to set the Viewport area which runs from (0,0) to ({port_width}, {port_height}). For example the following "svg" element sets the Viewport area in the Canvas Coordinate System at (0,0) with a size of (300,200):
<svg width="300" height="200" ...> ... </svg>
3. Use <svg preserveAspectRatio="{keyword}" .../> attribute to flag whether or not the Viewbox-Viewport mapping should respect the aspect ratio. For example the following "svg" element says that the aspect ratio is not respected:
<svg preserveAspectRatio="none" ...> ... </svg>
Here is a HTML document, viewbox.html, that has a SVG image with the Viewbox-Viewport mapping specified as "svg" attributes:
<html><body> <div style="width: 400px; height: 300px; background-color: lightgrey;"> <svg xmlns="http://www.w3.org/2000/svg" style="background-color: #ffffff" width="300" height="200" viewBox="0 -100 75 100" preserveAspectRatio="none"> <ellipse cx="0" cy="0" rx="75" ry="100" stroke="blue" stroke-width="20" fill="none"/> </svg> </div> </body></html>

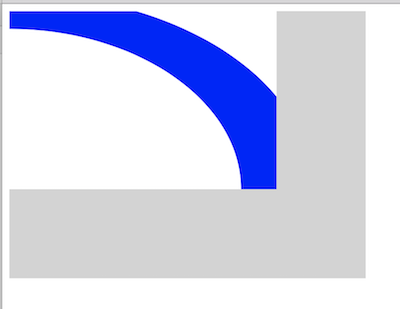

When you open the above HTML file, viewbox.html, in a Web browser, you see a portion of the ellipse object inside the Viewbox being mapped to the Viewport:
Note that the grey area represents the HTML "div" tag area, where the SVG canvas is displayed and aligned to the top left corner.
⇒ What Is the Default SVG Viewbox
⇐ What Is SVG Viewbox-Viewport Mapping
