Link and Activity LEDs on Ethernet Socket

Home > Tools

Q

What are Link and Activity LEDs on Ethernet Socket?

✍: FYIcenter.com

A

Link and Activity LEDs on Ethernet Socket are LED lights supported on ethernet RJ45 sockets.

There are 2 types of Link and Activity LED configurations:

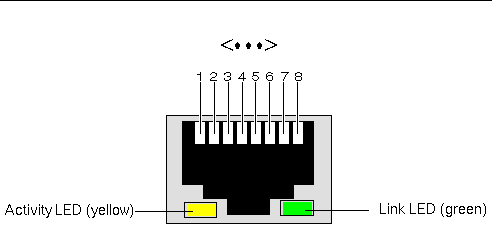

1. Two separate LEDs: A yellow Activity LED and a green Link LED.

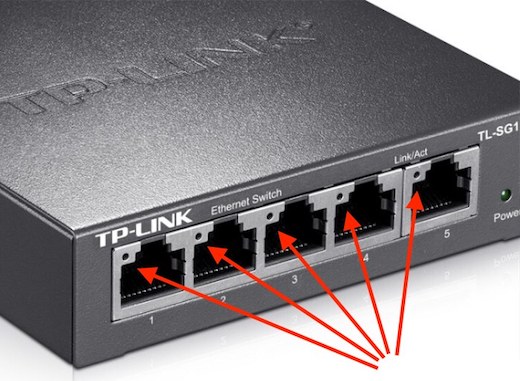

2. A single Link and Activity combined LED: Steady green for link up and idle (link is up and noactivity is detected). Flashing green for link up and activity (link is up and activity is detected).

⇒ Troubleshoot Ethernet Cable Connection

⇐ RJ45 Socket and Connector

⇑ Internet Network Devices

⇑⇑ Internet Connection - Frequently Asked Questions
