LibreOffice to View MathML Document

Q

How to use LibreOffice Formula module to view MathML documents?

✍: FYIcenter.com

A

LibreOffice Formula module allows you to convert MathML document in StarMath formula and view the rendered output. You can follow these steps to try it:

1. Run LibreOffice and click "File > New > Formula" to start the Formula module with a new formula document.

2. Click "Tools > Import Formula" and select a MathML document like Einstein-Equation.mml.

3. Or copy a MathML document content and click "Tools > Import MathML from Clipboard".

4. The imported MathML document will be converted into a StarMath formula and rendered in the output area.

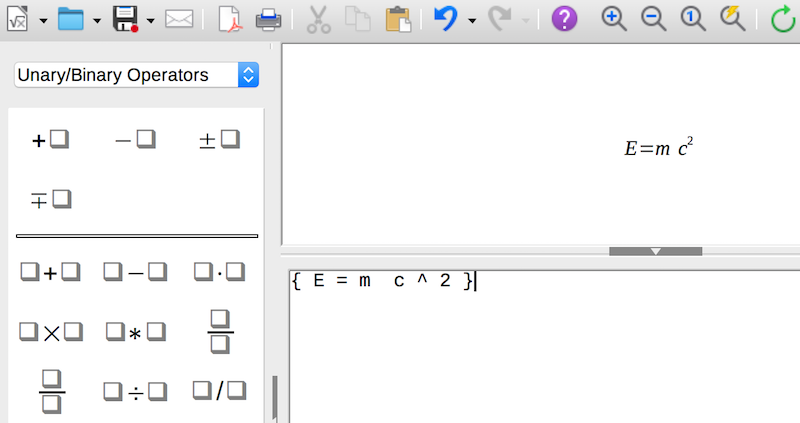

Convert MathML Document to LibreOffice Formula

If you also convert a LibreOffice formula back to a MathML document by clicking "File > Save as > MathML 2.0 (.mml)".

If you are using OpenOffice, it has the same functionalities to import and save MathML documents.
