JEuclid MathViewer to View MathML Document

Q

How to use JEuclid MathViewer to view MathML documents?

✍: FYIcenter.com

A

JEuclid MathViewer is a Java Applet application that allows you to render MathML document. You can follow these steps to try it:

1. Download and install JEuclid from JEuclid SourceForge Website.

2. Install an older version of JDK like 1.6. JEuclid does not work on new versions of JDK.

3. Run JEuclid MathViewer from the downloaded package: $JEuclid_Home/bin/mathviewer.

4. Enter the following MathML document in the lower area of the MathViewer window.

<math xmlns="http://www.w3.org/1998/Math/MathML">
  <mrow>
    <mi>E</mi><mo>=</mo><mi>m</mi><mo>⁢</mo>
    <msup><mi>c</mi><mn>2</mn></msup>
  </mrow>
</math>

5. View the rendered image in the upper area.

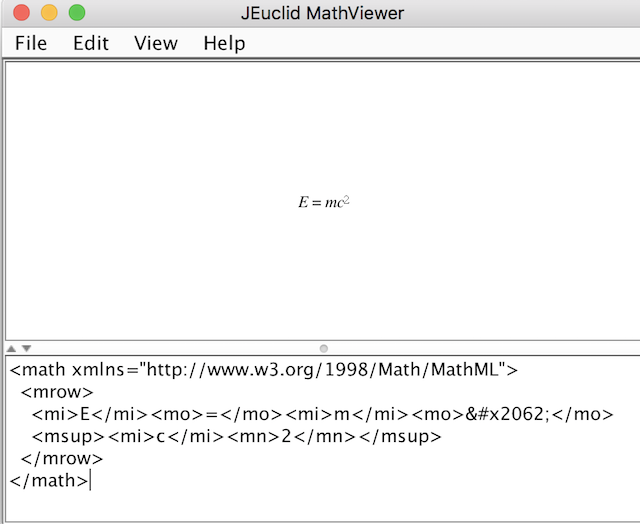

View MathML Document with JEuclid MathViewer
