How to Draw a Math Curve with Python Engine?
✍: FYIcenter.com
If you want to draw a math curve quickly,
you can use the Classic Jupyter Server provided on jupyter.org
as show in this tutorial.
1. Follow the previous tutorial to start the Classic Jupyter Server at jupyter.org.

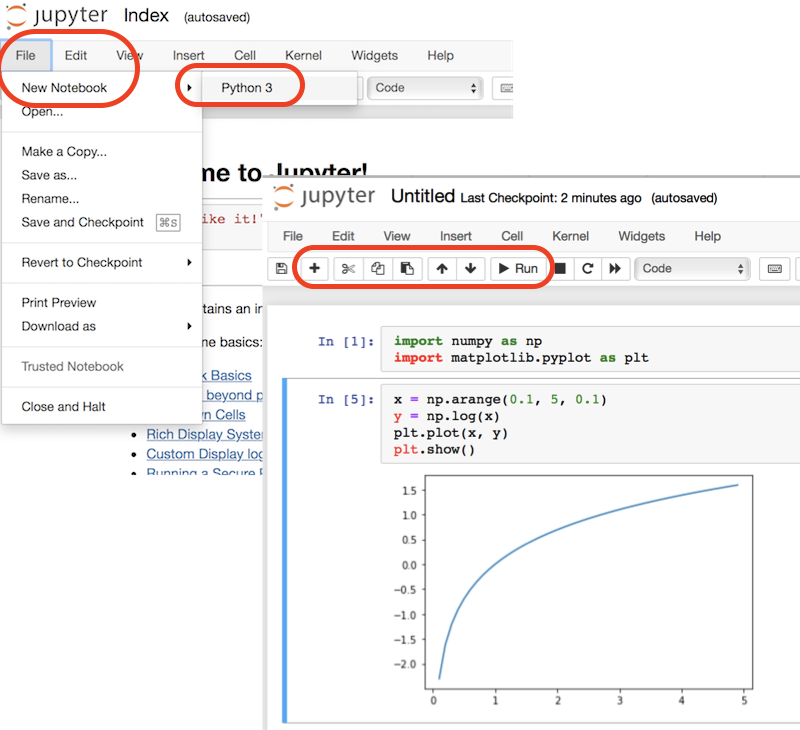

2. Click "File > New Notebook > Python 3" menu. You see a new notebook opened.
3. Click "+" icon to insert a new cell in notebook. And enter the following Python code to import "numpy" and "matplotlib" libraries.
import numpy as np import matplotlib.pyplot as plt
4. Click "Run" icon to execute the code. You see no output.
5. Click "+" icon to insert another new cell in notebook. And enter the following Python code to draw a section of a Log curve.
x = np.arange(0.1, 5, 0.1) y = np.log(x) plt.plot(x, y) plt.show()
6. Click "Run" icon to execute the code. You see an image of the Log curve generated.
